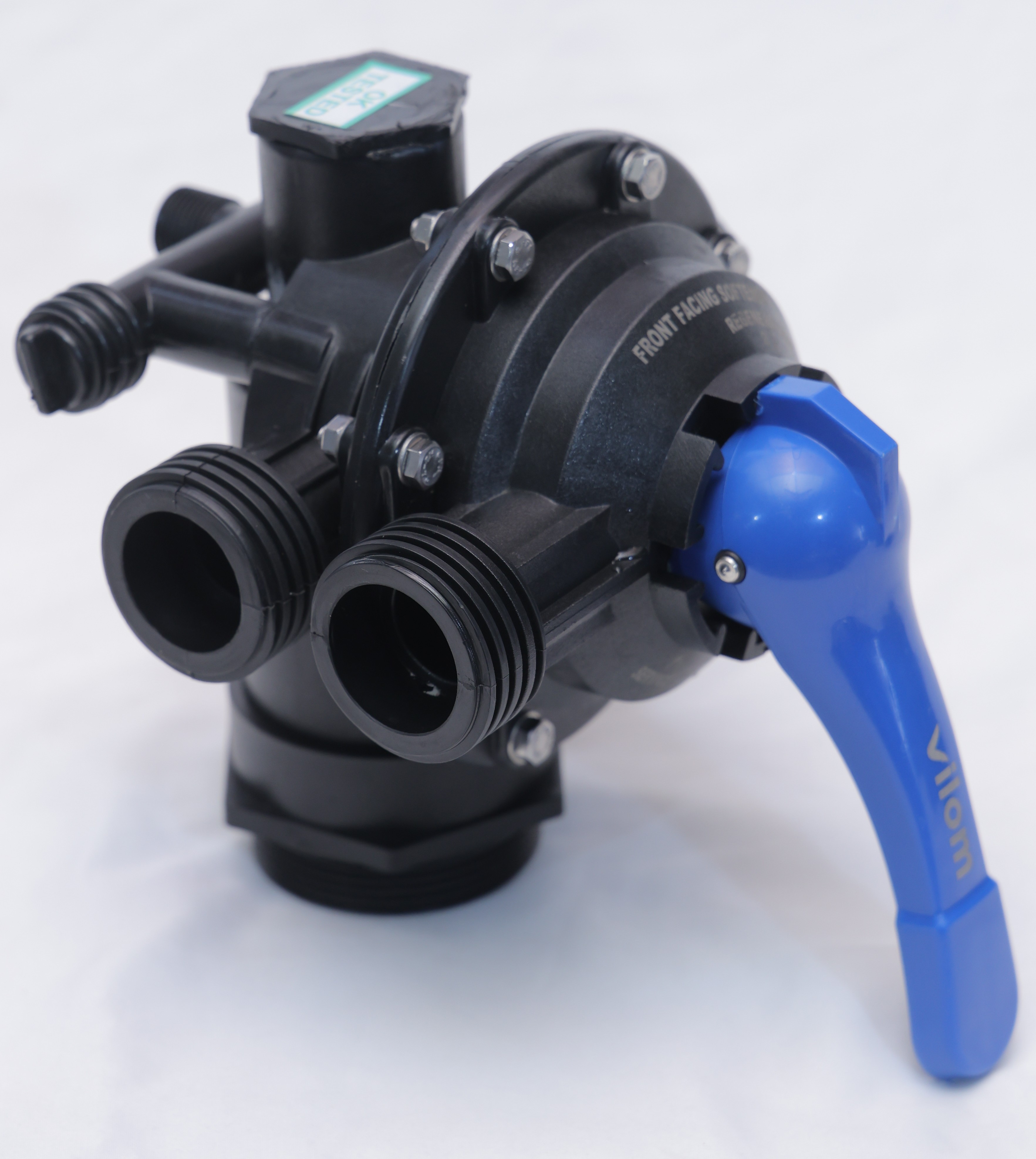

Multiport Valve
Vili Composites industries was establish in the year 2012 to manufacture and world class product related to water treatment industries.
25/40/50zNB Multiport Valves - Technical Specifications
Vili's products have the following features:
| Material of Construction | ABS |
| Maximum Flow Rate | 2000 to 14000 lph @ 0.5 Kg/cm² pressure drop |
| Valve Connection to Vessel | 2 1/2" NPT(M) or 4" NPT(M) Adaptors Provided |
| Riser Pipe Size | 32mm OD PVC pipe |
| Inlet, Outlet, Drain Connections | 1" to 2 1/2" BSP(F) |
| Regenerant Suction Tubing | 1/2" |
| Ejector Type | 1/2" BSP (F) |
| Injector Ratio | 1:1 |
| Injector Suction Rate | 1000 lph @ 3 kg/cm² |
| Testing Pressure | 5 Kg/cm² |
| Minimum Pressure for Uniform Suction | 3 Kg/cm² |
| Accessories | Top and bottom disc type strainer, Suction tubing and foot valve for softeners only |
