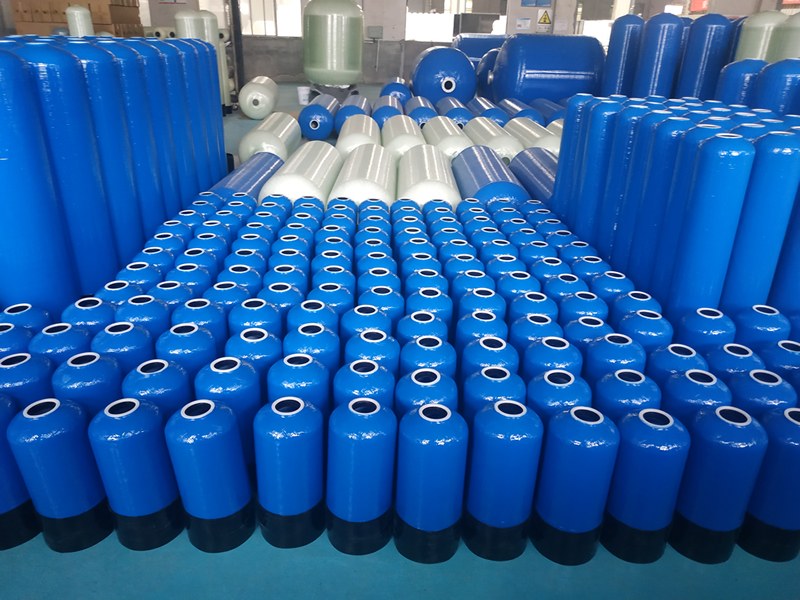

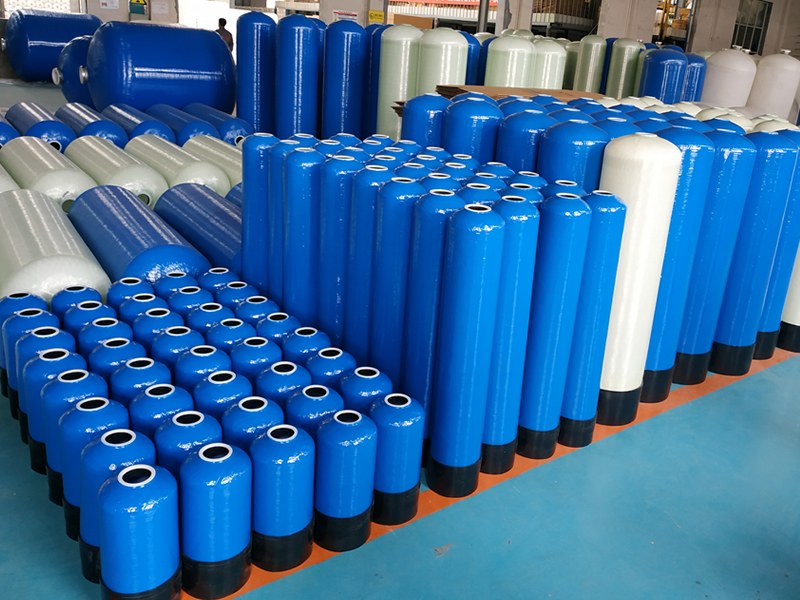

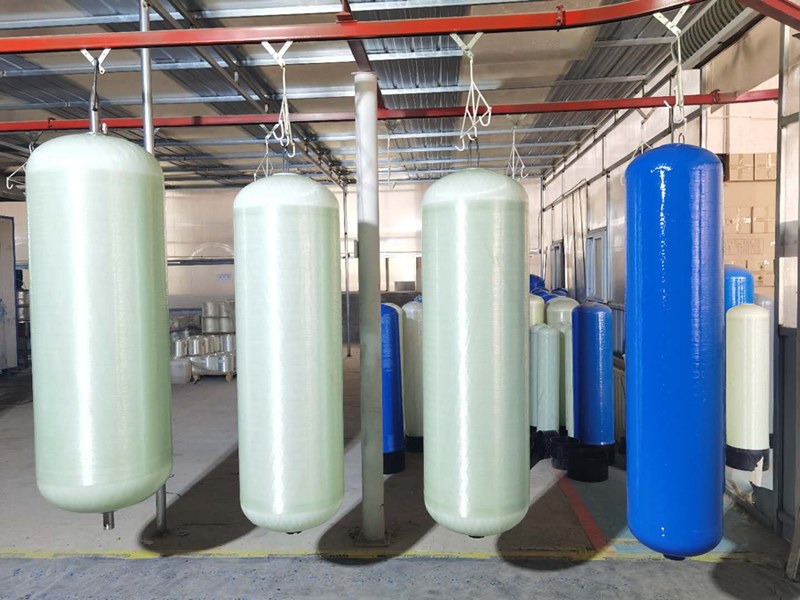

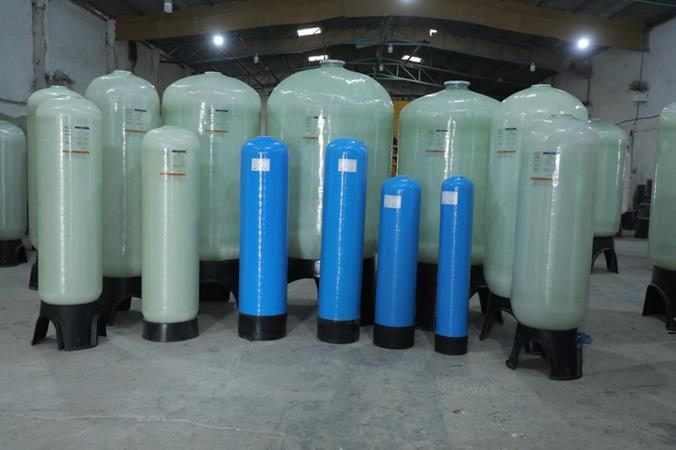

FRP Pressure Vessels
Vili Composites industries was establish in the year 2012 to manufacture and world class product related to water treatment industries.
FRP Tank (vessels) new launch for various water filtration, water softening, pharmaceutical, industrial boiler and filtering system. The vessels can be sufficiently equipped with mechanical control valves.
Vili's products have the following features:
The premium quality FRP pressure vessels are applicable for practically any water treatment application. The FRP winding provides strength to withstand pressure up to 10 kg/cm² without any structural damage.
- 01. Made up of high-performance composite material with filament wound with epoxy resin.
- 02. Full choice of vessels available from 8" × 44" to 48" × 72".
- 03. Top and bottom opening available for 14" through 48" vessel.
- 04. Maximum operating pressure 150 psi (10.5 kgf/cm²).
- 05. Maximum operating temperature 120°F (49°C).
- 06. 100% corrosion resistant.
- 07. Low installation and maintenance.
| No | Model Base | Opening | Volume Approximate | Base | Dimension (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Top | Bottom | LTR | Gallon | A | B | C | D | |||
| 1 | 844 | 2.5" 8-NPSM | / | 32.6 | 8.6 | Standard | 1130 | 217 | / | 207 |
| 2 | 1054 | 2.5" 8-NPSM | / | 62 | 16.4 | Standard | 1425 | 265 | / | 261 |
| 3 | 1248 | 2.5" 8-NPSM | / | 78 | 20.6 | Standard | 1225 | 310 | / | 306 |
| 4 | 1252 | 2.5" 8-NPSM | / | 84.8 | 22.4 | Standard | 1325 | 310 | / | 306 |
| 5 | 1354 | 2.5" 8-NPSM | / | 104 | 27.5 | Standard | 1415 | 344 | / | 340 |
| 6 | 1465 | 2.5" 8-NPSM | / | 154 | 40.6 | Standard | 1705 | 370 | / | 365 |
| 7 | 1465 | 4" - 8UN | / | 154 | 40.6 | Standard | 1700 | 370 | / | 365 |
| 8 | 1665 | 4" - 8UN | 4" - 8UN | 154 | 40.6 | Tripod | 1915 | 380 | 240 | 365 |
| 9 | 1665 | 4" - 8UN | / | 189 | 49.9 | Standard | 1715 | 415 | / | 410 |
| 10 | 1665 | 4" - 8UN | 4" - 8UN | 189 | 49.9 | Tripod | 1910 | 380 | 252 | 410 |
| 11 | 1865 | 4" - 8UN | / | 268 | 70.7 | Standard | 1720 | 455 | / | 455 |
| 12 | 1865 | 4" - 8UN | 4" - 8UN | 268 | 70.7 | Tripod | 1905 | 450 | 242 | 455 |
| 13 | 2162 | 4" - 8UN | 4" - 8UN | 341 | 90.08 | Tripod | 1908 | 565 | 308 | 546 |
| 14 | 2472 | 4" - 8UN | 4" - 8UN | 490 | 129.4 | Tripod | 2226 | 636 | 356 | 628 |
| 15 | 3072 | 4" - 8UN | 4" - 8UN | 735 | 194.1 | Tripod | 2210 | 790 | 520 | 790 |
| 16 | 3672 | 4" - 8UN | 4" - 8UN | 1050 | 277.3 | Tripod | 2280 | 975 | 600 | 918 |
| 17 | 4272 | 6" Flange | 6" Flange | 1432 | 378.1 | Tripod | 2465 | 1100 | 400 | 1080 |
| 18 | 4872 | 6" Flange | 6" Flange | 1830 | 483.4 | Tripod | 2485 | 1225 | 370 | 1240 |

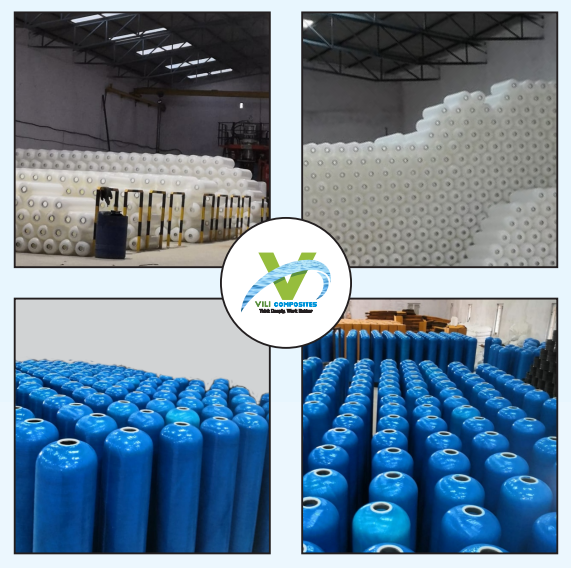

The state of the art manufacturing facility at morbi, Gujarat uses the latest technology on FRP pressure vessel backed up by committed and highly experienced working team.
